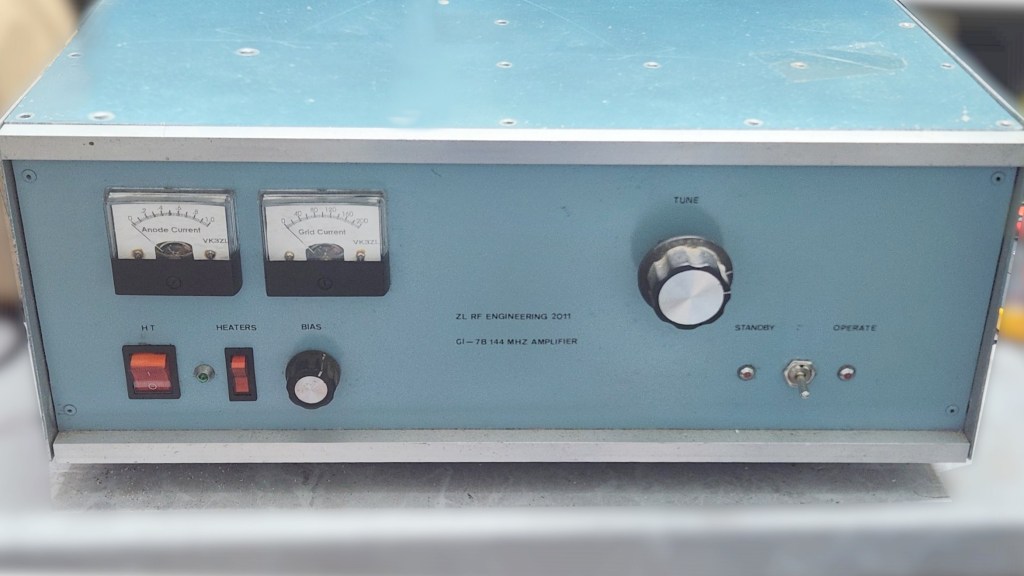

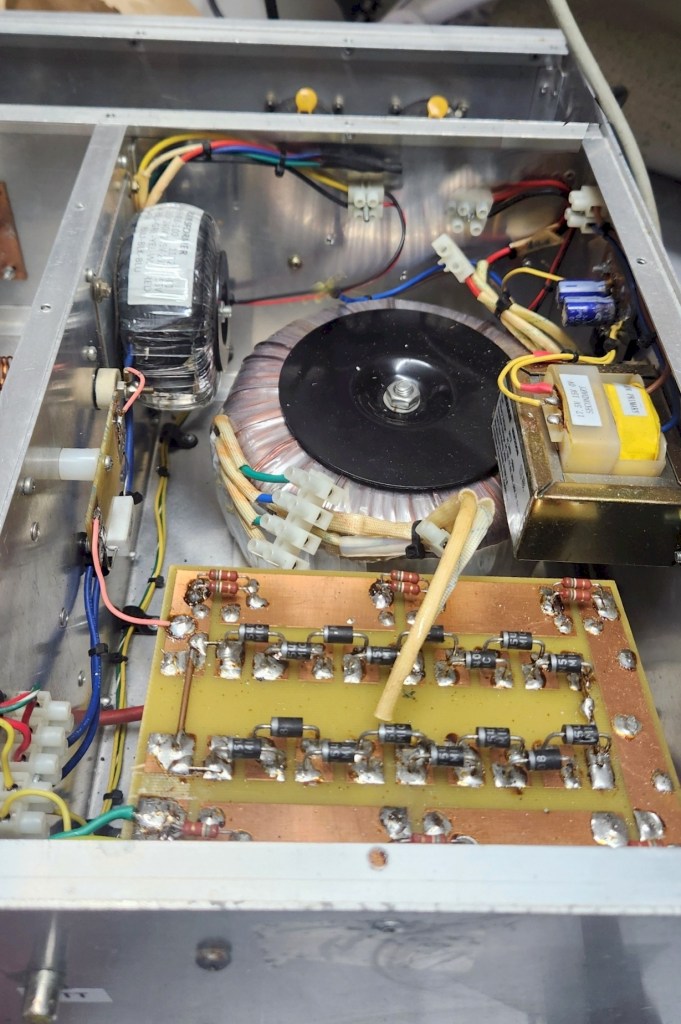

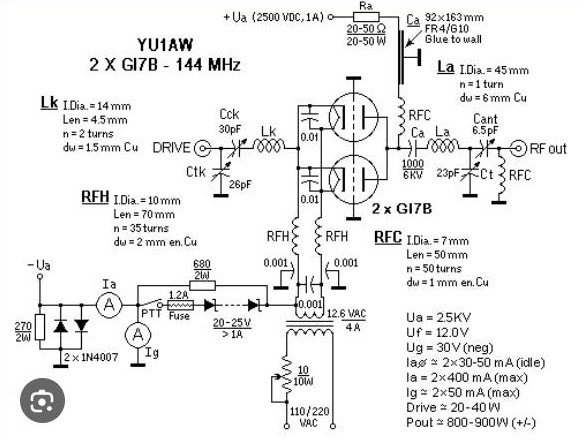

ZL Engineering 2x GI-7B 2m Power Amplifier

Built by VK3ZL (SK) 2011

Operating conditions

HT 2800 V
Heaters 12.6Vac

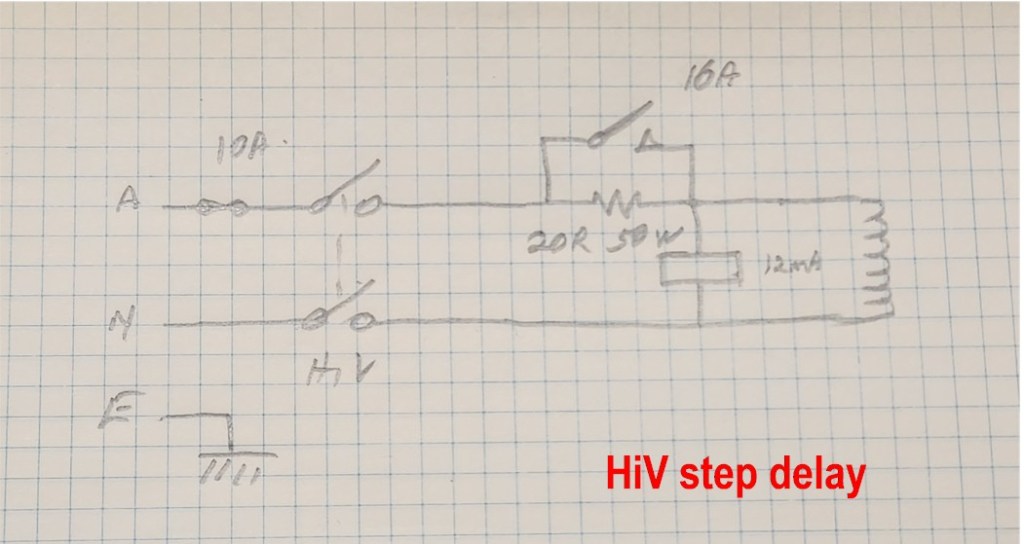

Heater pre HV 3min min

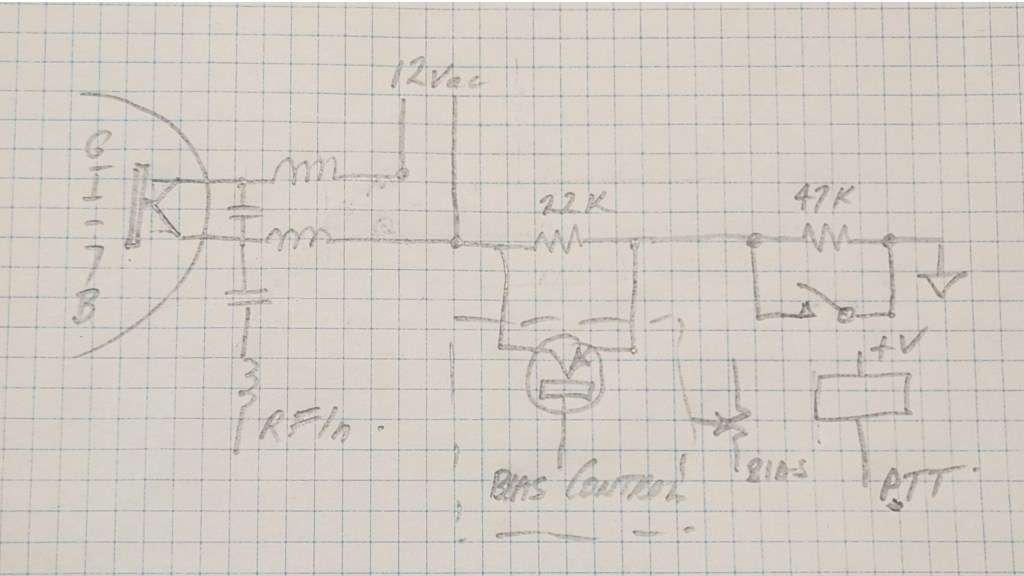

Ia (idle) 50mA each tube.
Ia max 400mA each tube
Power output 600W

GI7B_triode_to500MHz_Download
Fan_SleeveBearing_240Vac_120mm-SiroccoDownload
